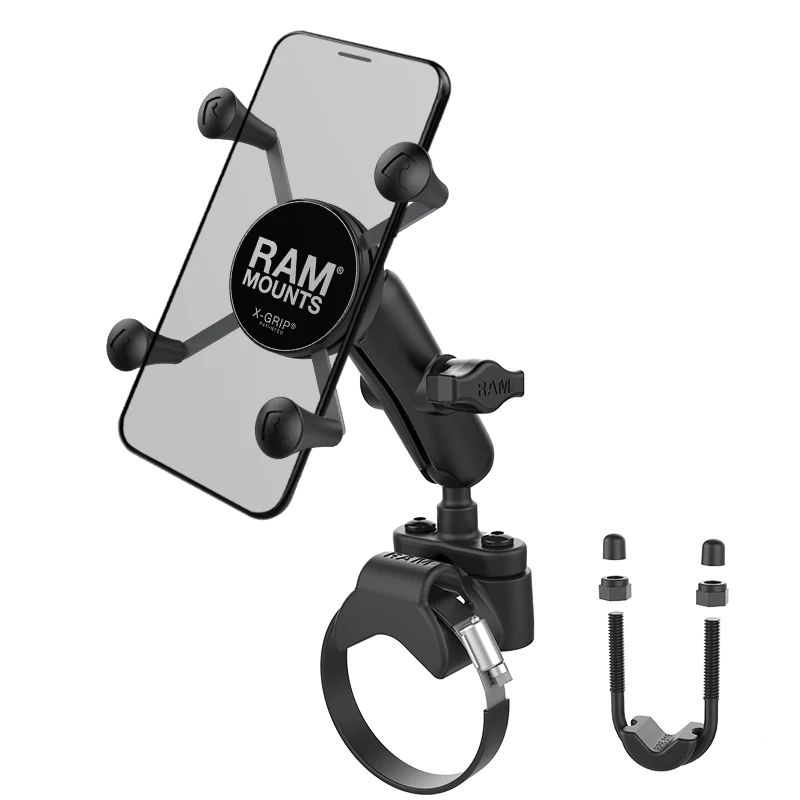

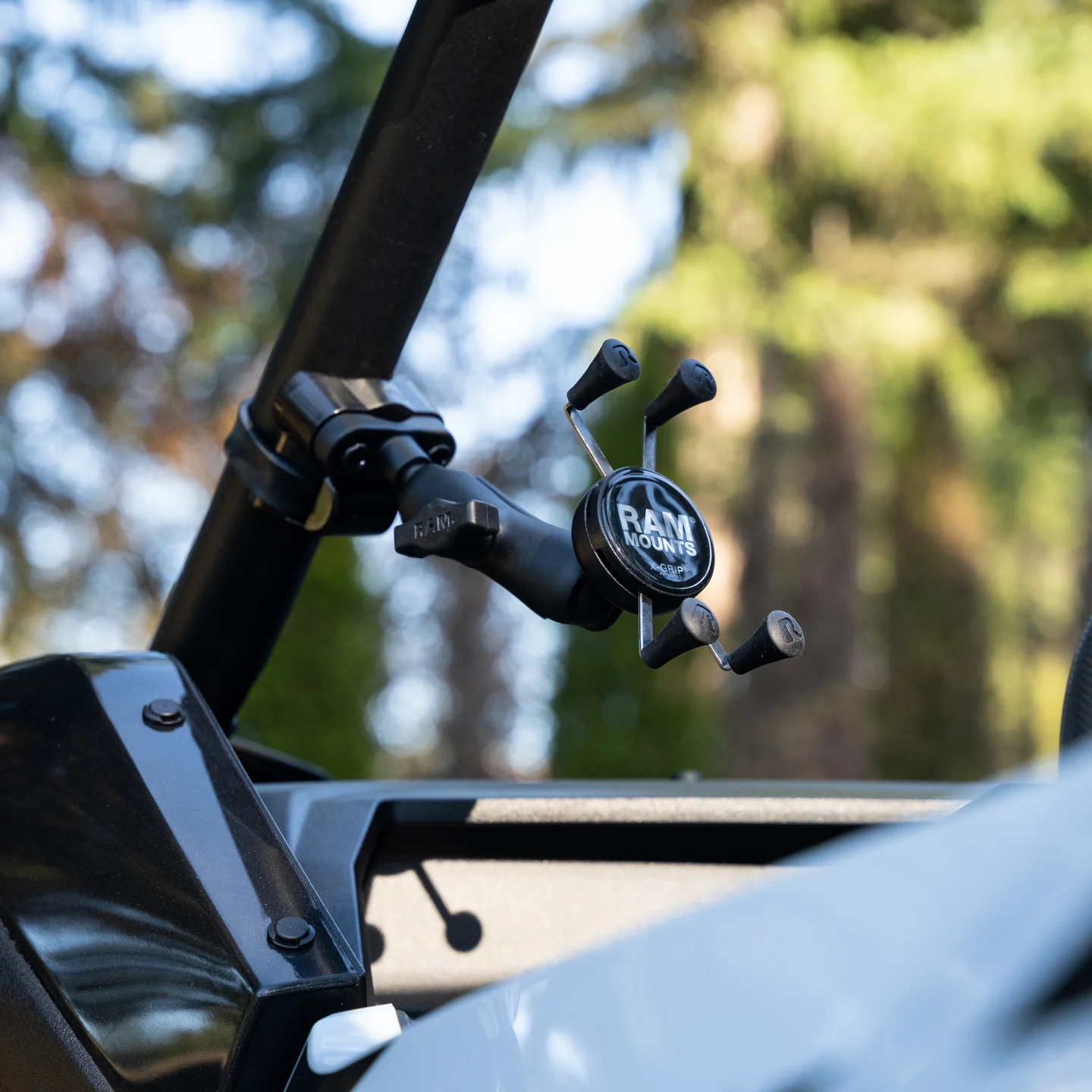

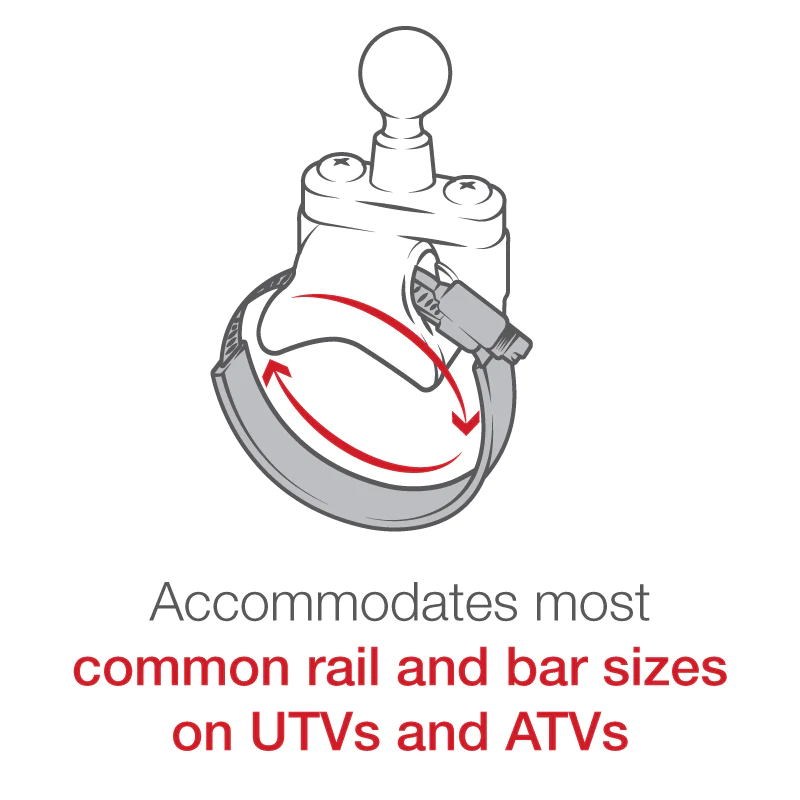

The RAM-B-231-2-UN7U consists of a steel strap base, stainless steel u-bolt base, double socket arm and universal spring loaded X-Grip® cradle for cell phones. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

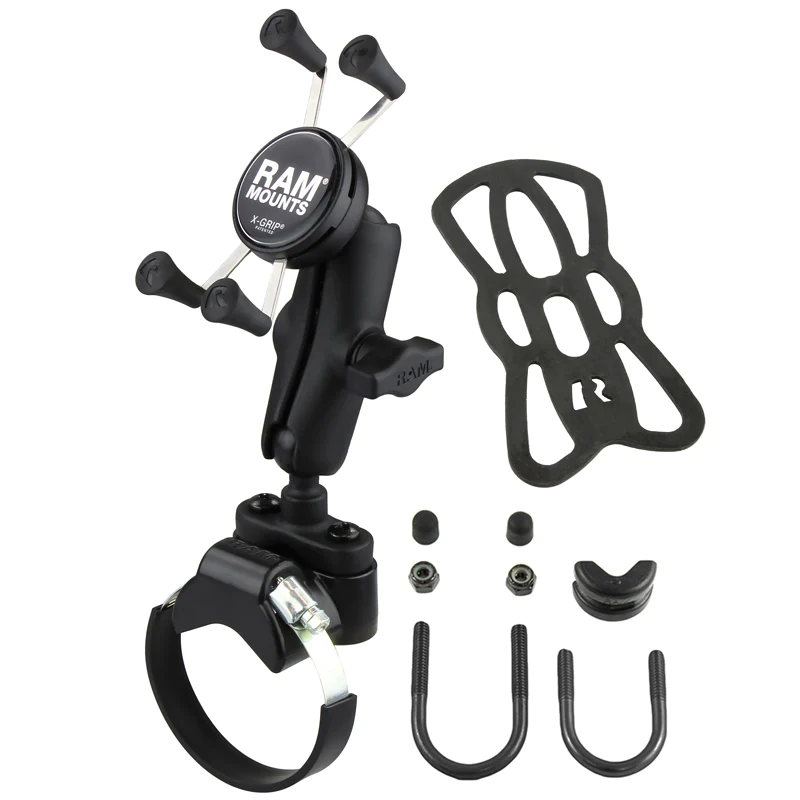

HARDWARE INCLUDED
(1) Optional Tether
(1) Glue Tube for Rubber Caps
(1) Strap Clamp Adapter
(2) 1/4"-20 x 1" Machine Screws
(2) 1/4"-20 Nylock Nuts
(1) Zinc Worm Drive Strap Clamp
(1) 6" Rubber Strip
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(2) Rubber Caps
(1) U-Bolt Spacer
HOLDER DIMENSIONS
Width Range: 1.875" - 3.25"
Depth Range: .875" max
CLAMP RANGE
U-Bolt: .5" - 1" diameter
Strap Clamp: 1.57" - 3.15" diameter
SOCKET TO SOCKET LENGTH
3"
BALL SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
MATERIALS
Marine-grade aluminum
High strength composite
Stainless steel
PACKAGING TYPE
Poly Bag
WEIGHT
0.9 lb
ADDITIONAL INFORMATION
Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.
