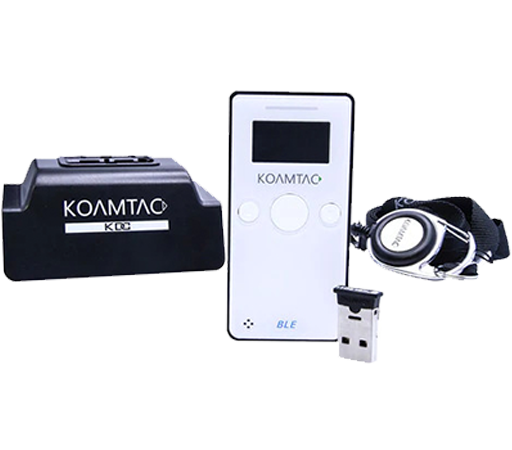

KDC280 Bluetooth Low Energy (BLE) Barcode Scanner

KDC280C-BLE 2D Imager Bluetooth Low Energy Barcode Scanner & Data Collector

SKU: KDC280
Category: Scanner
Type: Bluetooth Scanner
Brand: Koamtac
Tags: Barcode Scanners, Scanner,

The KDC280 enables diverse mobile auto-identification applications for collecting and storing barcode data. The KDC280 features Bluetooth Low Energy (BLE) to enable faster and simpler connection methods as well as use with smartwatches, smartglasses, and other wearable smart devices.

A built-in display and keypad eliminate blind erroneous data collection and enable interactive processes. A rechargeable battery that is easily replaced can recharge from any USB port and allows more than 17,000 barcode scans with a 1-second interval. With 8MB of onboard memory that stores over 400,000 UPC product barcodes or 60,000 product database records, memory shortages are no longer a concern.

The KDC280 comes with KTSync^® software and SDK for Android, iOS, and Windows devices. KTSync includes a keyboard wedging feature, application generation, DB lookup, inventory management, and KDC configuration features. SDK provides technical support from our top engineers and development team.

Regulatory Conformance

R&TTE, FCC, KC, TELEC, VCCI, SRRC, RoHS Compliant
Laser Safety: IEC60825/CDRH Class II
LED Safety: IEC62471:2006

Scan Range (10mil Code39)

Laser: 1.97″ to 7.48″ (50 mm to 190 mm)
CCD: 2.17″ to 11.81″ (55 mm to 300 mm)
Imager: 1.8″ to 9.68″ (46 mm to 246 mm)

Symbologies

Laser (1D): EAN-13, EAN-8, UPC-A, UPC-E, Code 39, ITF14,
Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 93,
Code 35, Bookland EAN-13, EAN-13/8 incl. add on, UPC-A/E
incl. add on, GS1 Omni, GS1 Limited, GS1 Expanded

CCD (1D): EAN-13, EAN-8, UPC-A, UPC-E, Code 39, ITF14,
Code 128, Interleaved 2 of 5, Codabar, GS1-128, Code 93,
Code 35, Bookland EAN-13, EAN-13/8 incl. add on, UPC-A/E
incl. add on, GS1 Omni, GS1 Limited, GS1 Expanded

Imager (1D): Codabar, Code 11, Code 39, Code 93, Code 128,
EAN-8, EAN-13, GS1 Composite, Interleaved 2 of 5, Matrix 2 of
5, MSI, Plessey, GS1 Omni, GS1 Limited, GS1 Expanded, Straight
2 of 5 Industrial, Straight 2 of 5 IATA, Telepen, Tri-Optic, UPC-A,
UPC-E0, UPC-E1

Imager (2D): Aztec Code, Aztec Runes, Codablock F, Data Matrix,
MaxiCode, MicroPDF417, PDF417, QR Code

Postal Codes: POSTNET, Planet Code, British Post, Canadian Post, Netherlands
(KIX) Post, Australian Post, Japanese Post, Chinese Post, Korean Post

MRZ: Supported

Physical Characteristics

Size: 1.57” x 3.23” x 0.71” (40 mm x 82 mm x 18 mm)
Weight: 2.03 oz (57.5 g)

Electrical Characteristics

Battery: Lithium-Ion (3.7V DC, 650mAh)
Charging: USB, Charging Cradle

Interfaces

Bluetooth^® Low Energy 5.0: HID (Android/iOS/Windows), SPP
USB: Flash memory (Windows), USB HID, USB Serial (Android with OTG cable / Windows)

User Environment

Ingress Protection Rating: IP65
Drop Spec: 5′ (1.5 m)
Operating: 14˚F to 122˚F (-10˚C to 50˚C)
Storage: -4˚F to 140˚F (-20˚C to 60˚C)
Humidity: 5% to 95% (non-condensing)
