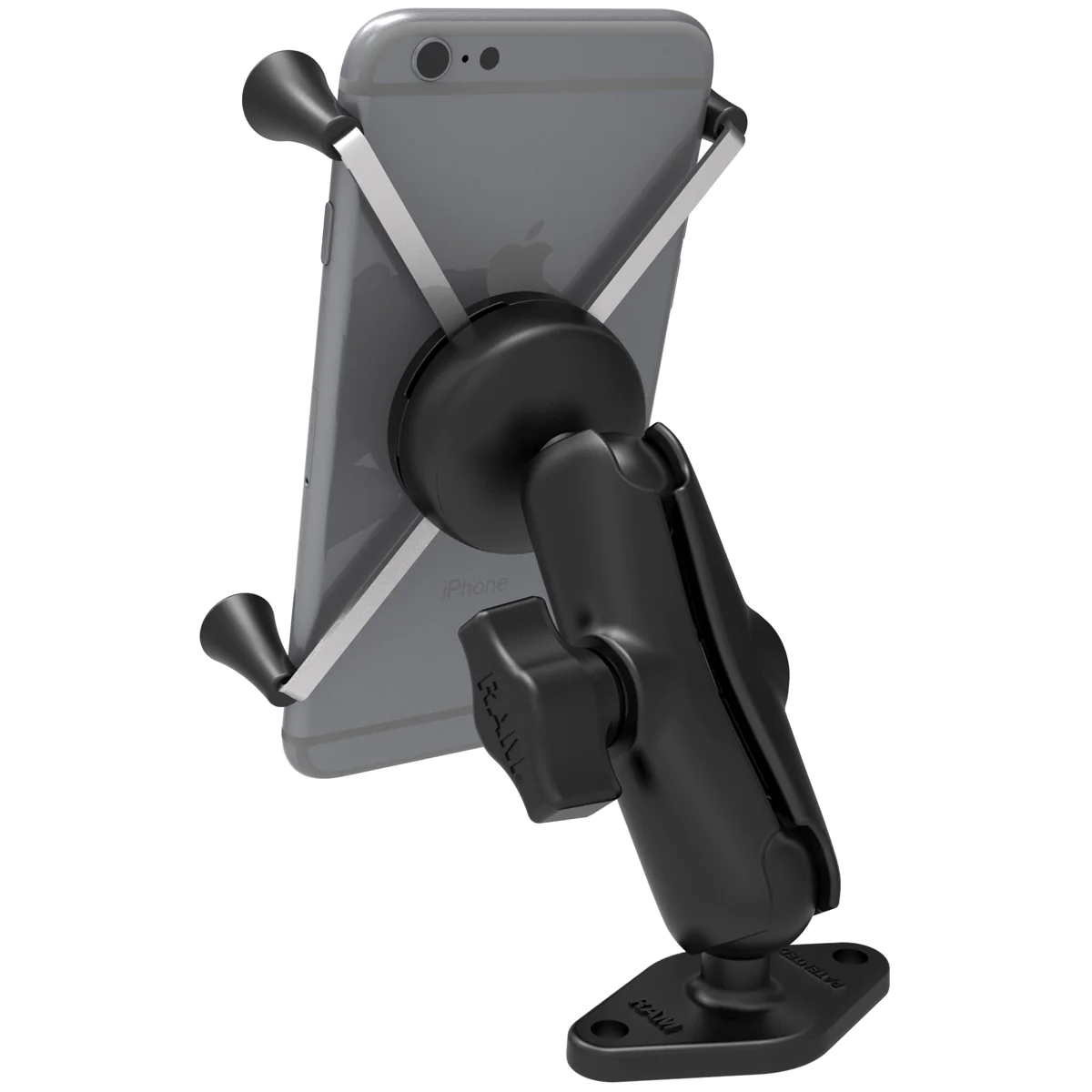

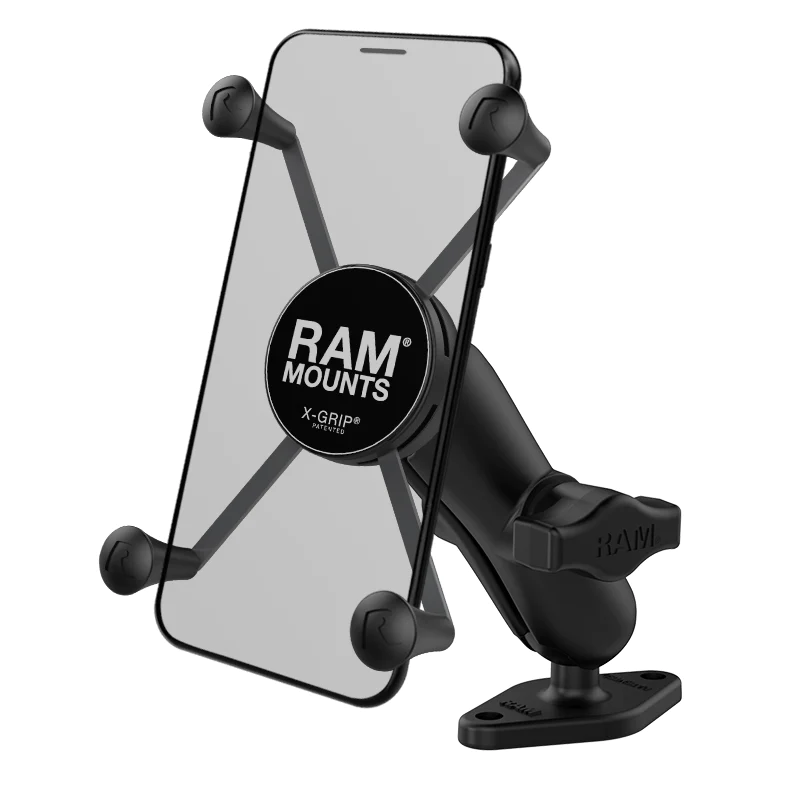

RAM® X-Grip® Large Phone Mount with Diamond Base

SKU: RAM-B-102-UN10U
Category: Mounting
Type: Phone Mounts
Brand: RAM Mounts
Tags: Phone Holder,

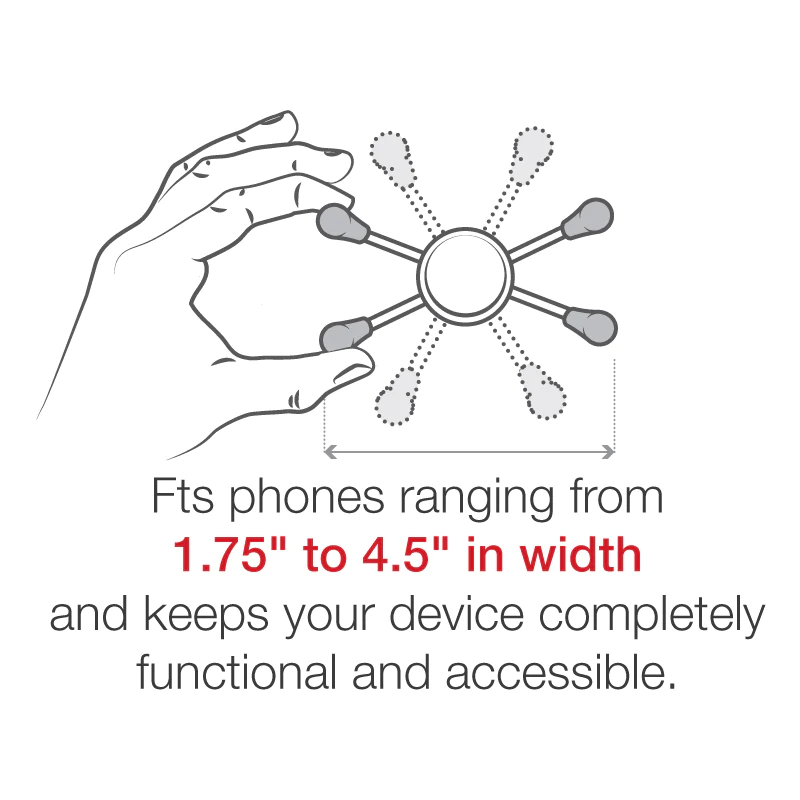

The popular spring-loaded RAM^® X-Grip^® phone holder features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. This large version of the RAM^® X-Grip^® fits phones ranging from 1.75" to 4.5" in width and keeps your device completely functional and accessible. The included diamond ball base features the industry-standard AMPS hole pattern, while RAM^® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – and helps to extend the life of your phone by providing shock and vibration damping. For outdoor applications – like being used as a motorcycle phone mount – the RAM^® X-Grip^® includes a device tether that is recommended for added security and peace of mind.

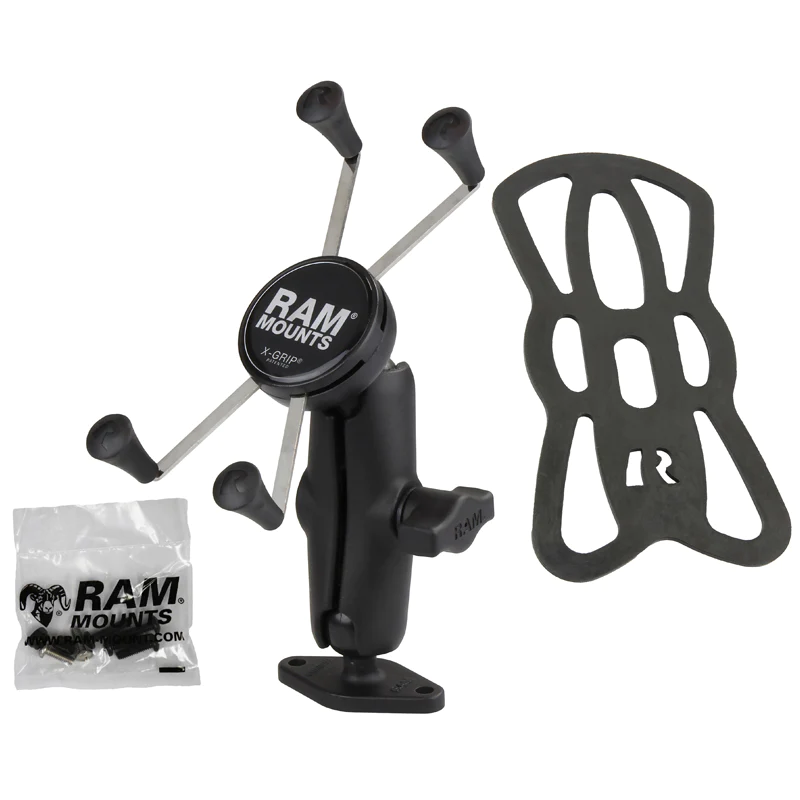

HARDWARE INCLUDED

(1) Optional Tether
(1) Glue Tube for Rubber Caps
(2) #8-32 x 1/2" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x .75" Screws
(2) #8-32 Nylock Nuts

HOLDER DIMENSIONS

Width Range: 1.75" - 4.5"
Depth Range: .875" max

SOCKET TO SOCKET LENGTH

HOLE PATTERN

2-Hole AMPS: 1.912"

PLATE SIZE

2.43" x 1.31"

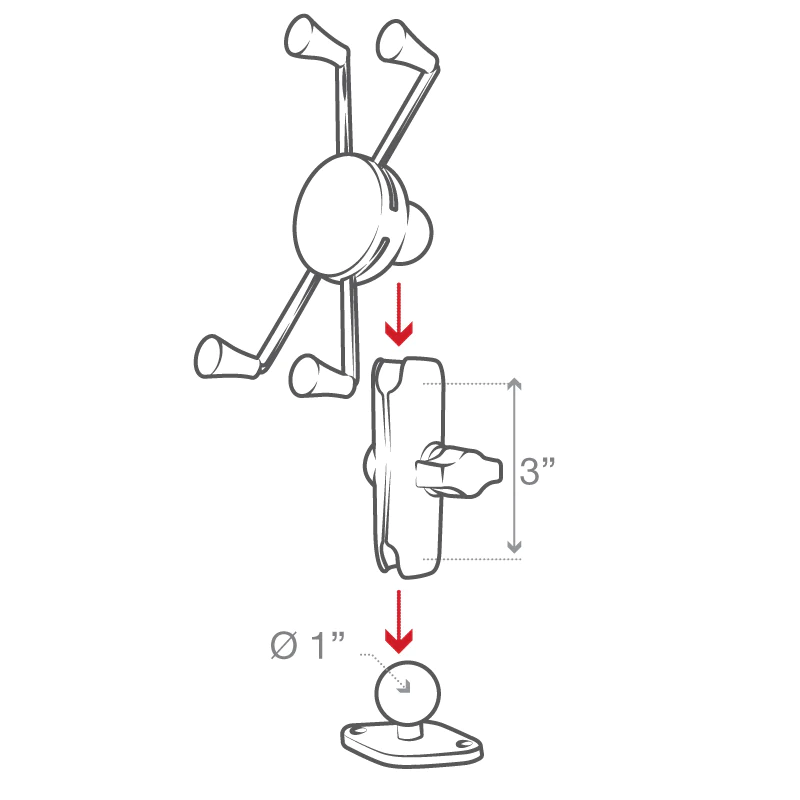

BALL SIZE

B Size (1")

WEIGHT CAPACITY

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

MATERIALS

Marine-grade aluminum
High strength composite
Stainless steel

PACKAGING TYPE

Poly Bag

WEIGHT

0.66 lb

ADDITIONAL INFORMATION

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.

INSTRUCTIONS

Spring-loaded 'X' design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use

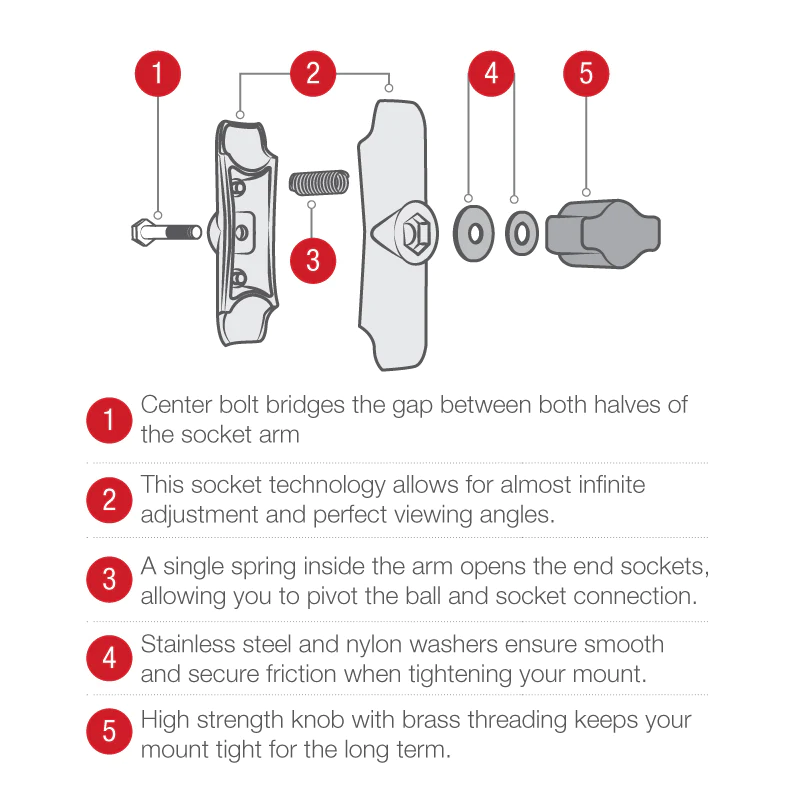

Diamond ball base featuring universal AMPS hole pattern included; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty
